Elevator Manufacturing & Solutions
At Newton Elevator, we provide quality elevator components and solutions designed for safety, durability, comfort, and reliable performance. From stylish elevator doors and customized cabins to precise dimensional specifications, our manufacturing solutions are designed to meet the requirements of residential, commercial, and institutional buildings.
Manufacturing Doors
- All
- SS Glass Door
- SS Door
- Collapse Door
- Side Opening Door
- Swing Door

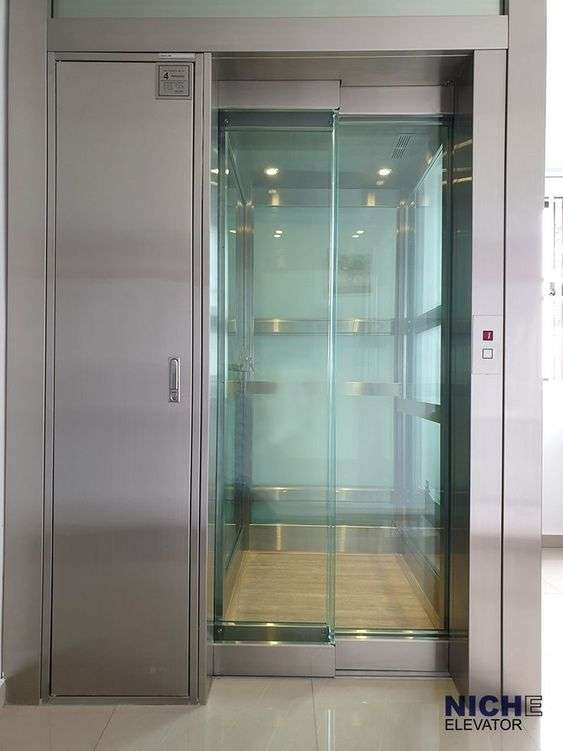

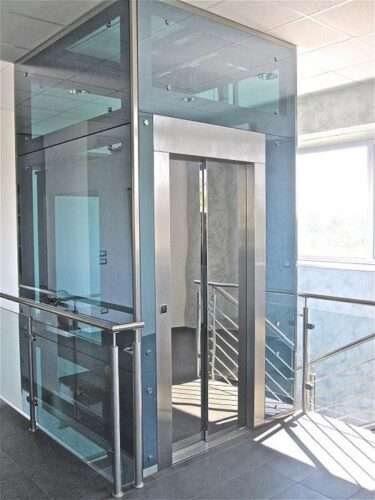

SS Glass Door

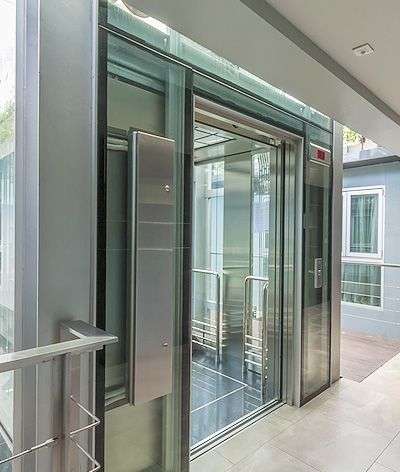

SS Glass Door

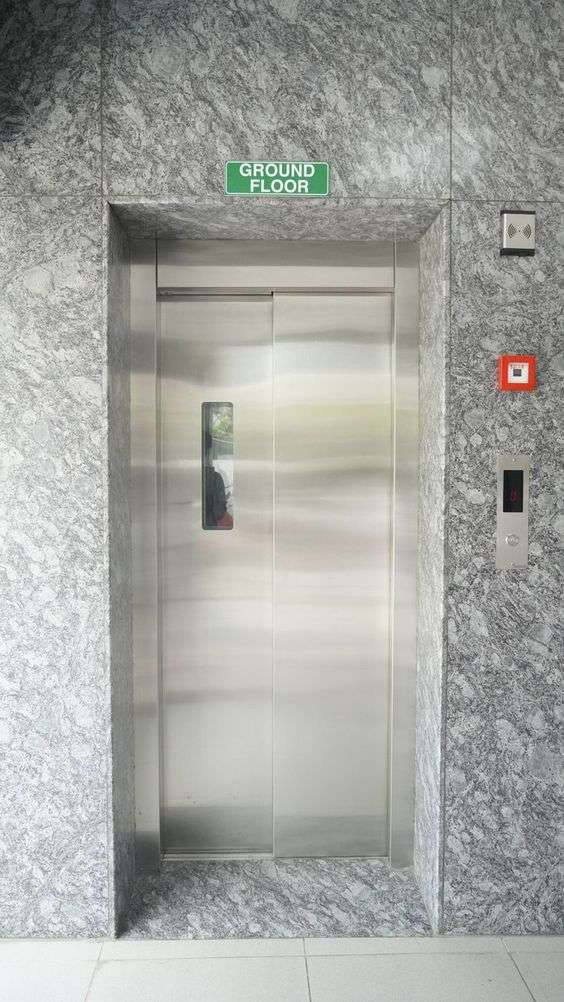

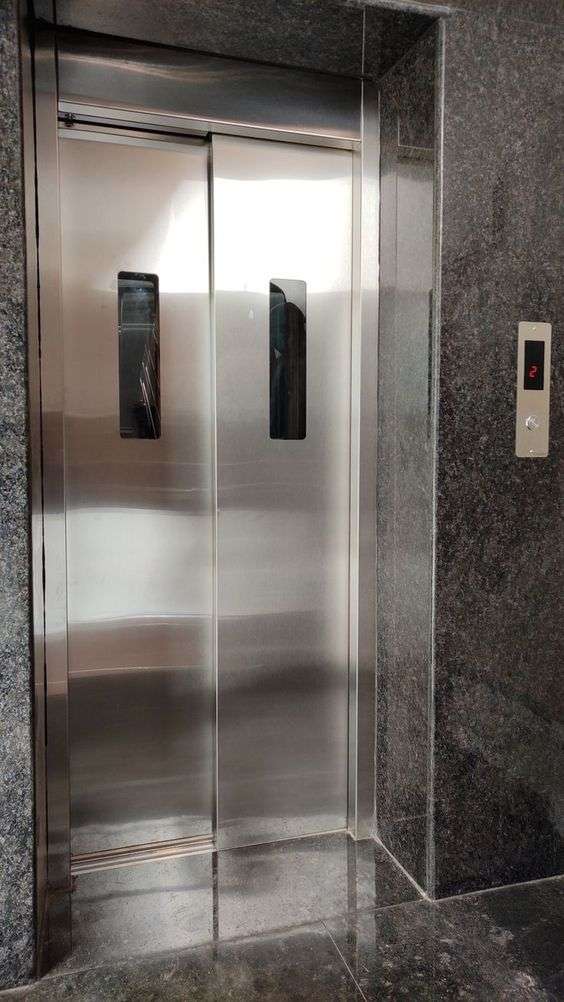

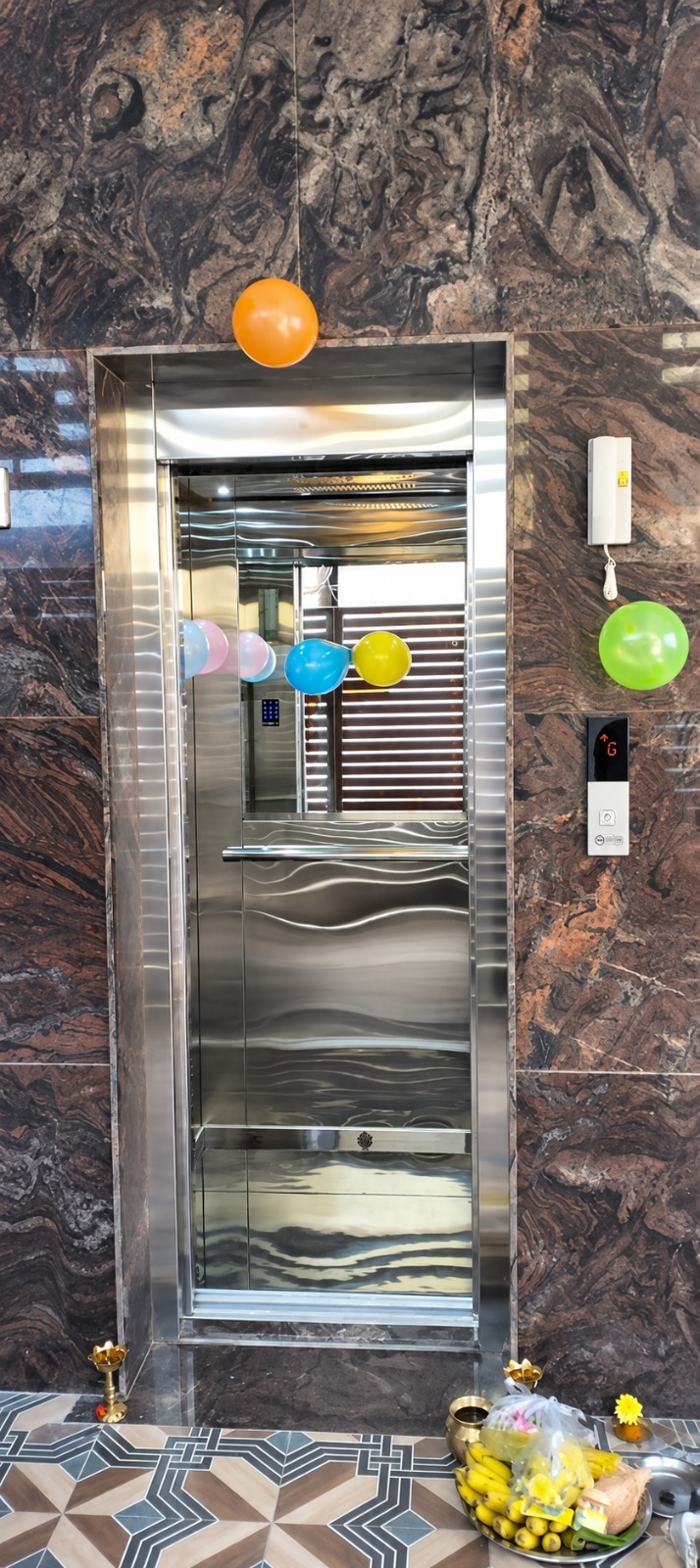

SS Door

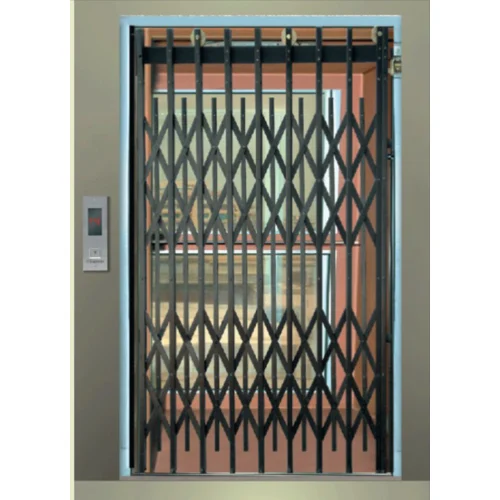

Collapse Door

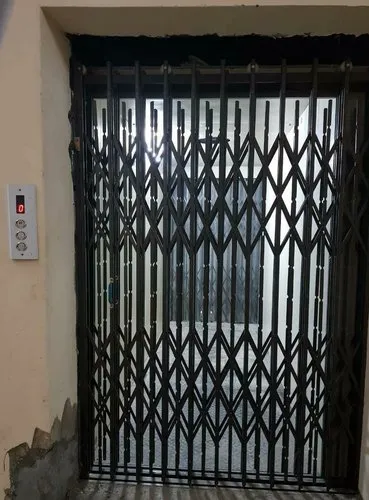

Collapse Door
Side Opening Door

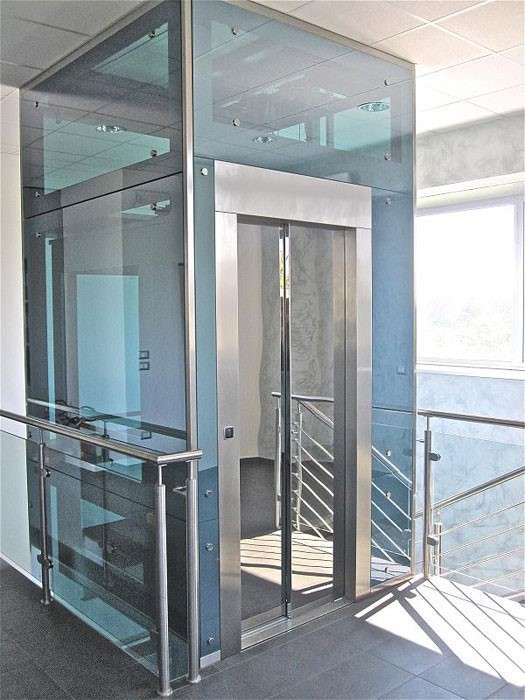

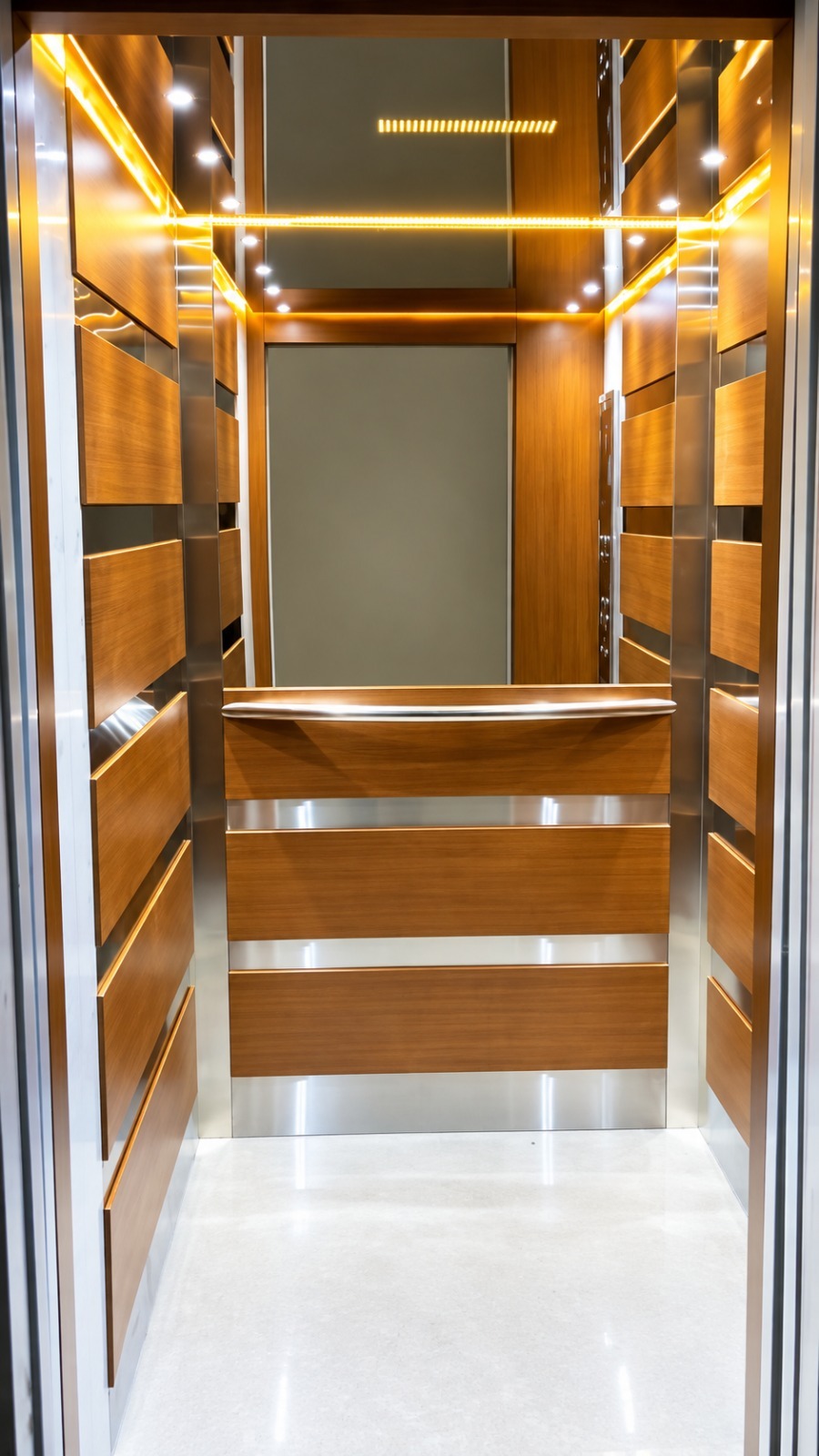

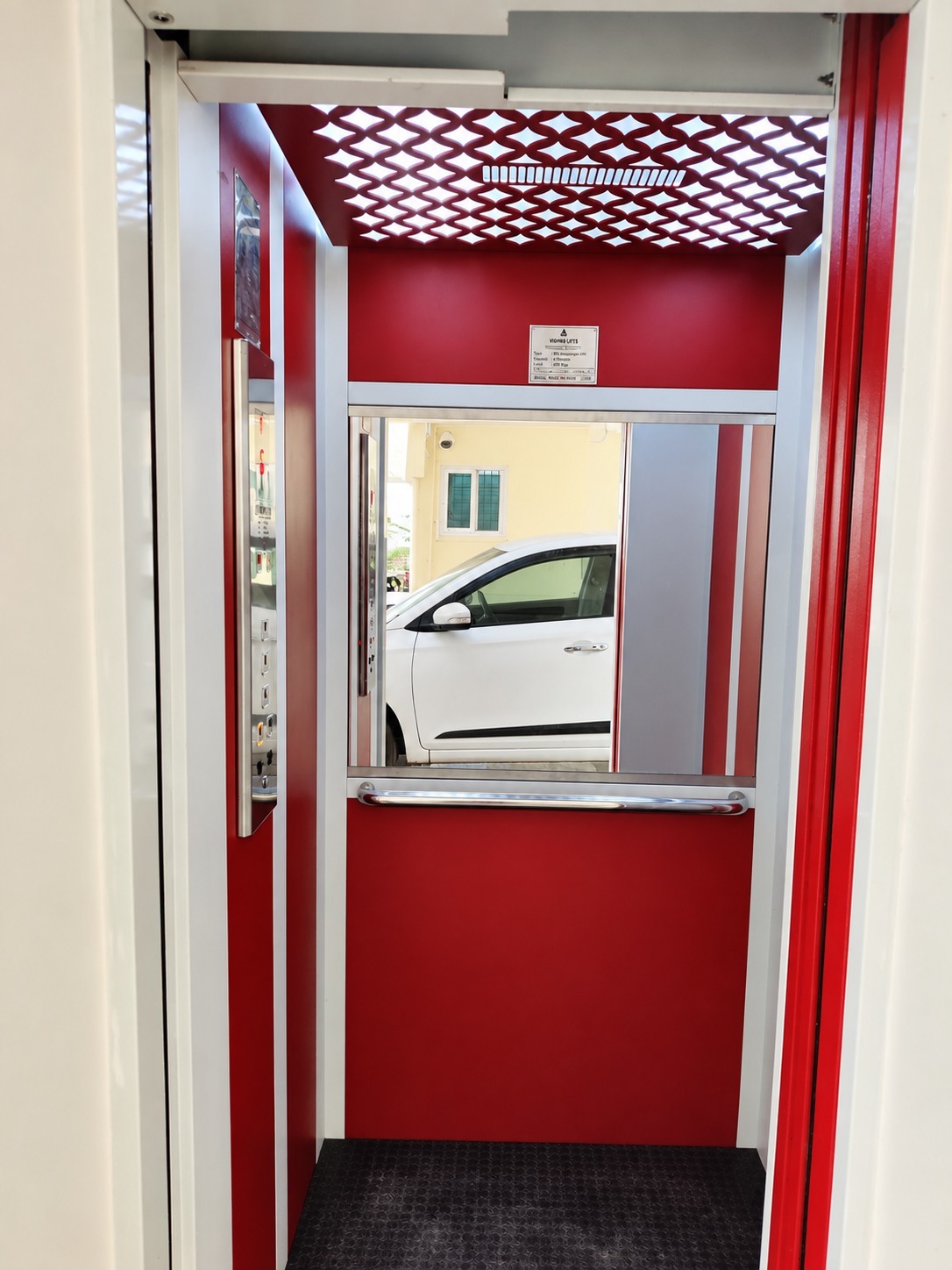

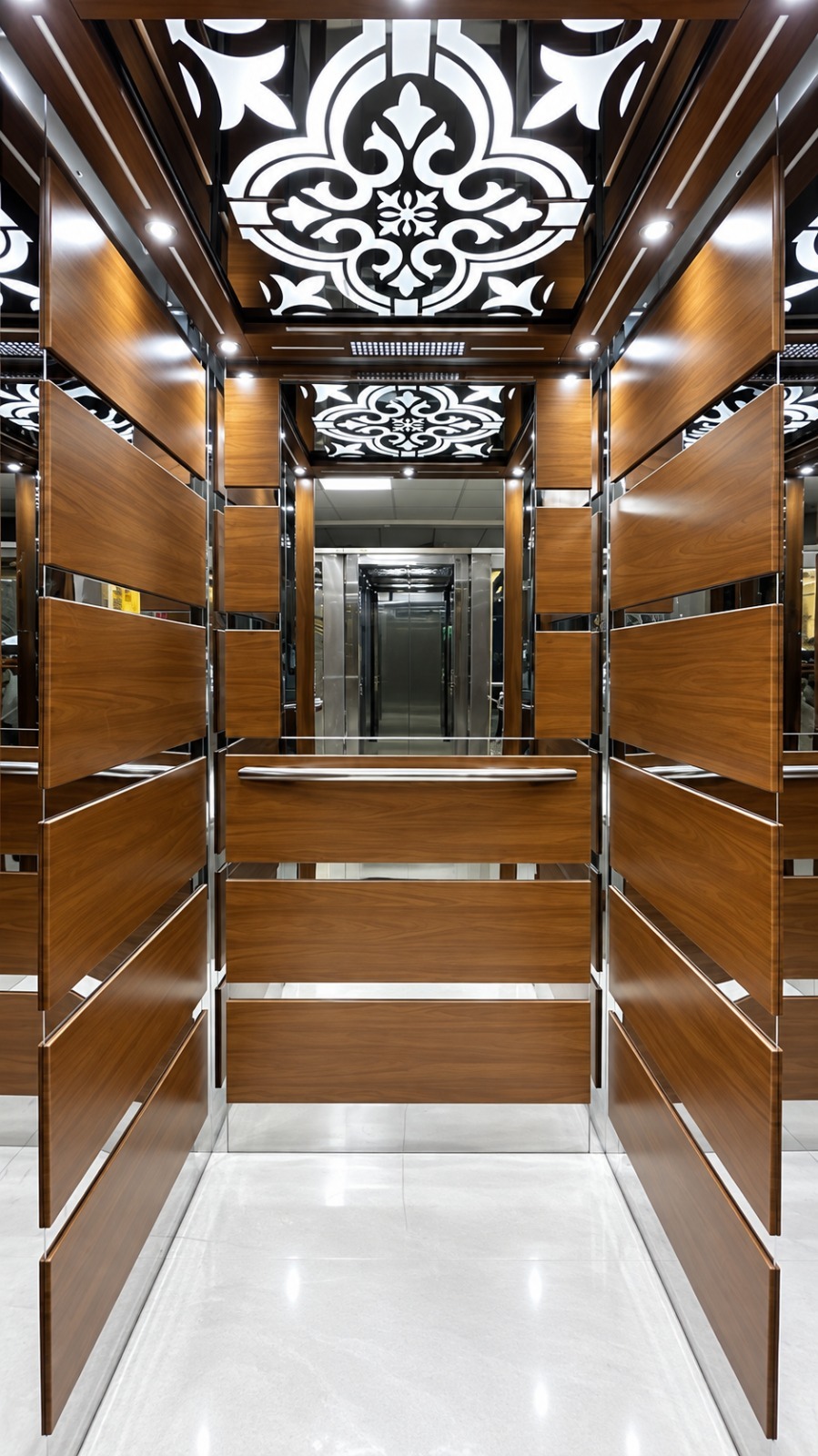

Elevator Cabin
Measurements of Elevators

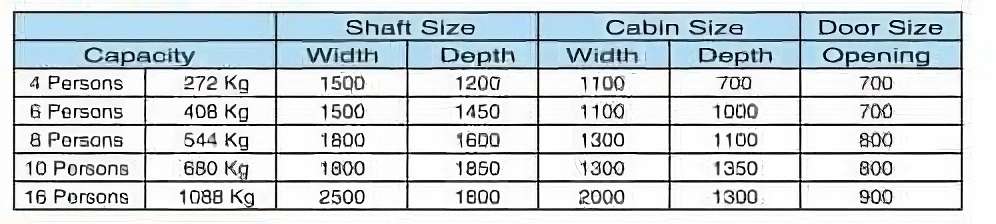

Auto Door Type Centre Open
| Total | Shaft Size | Cabin Size | Door Size | |||
|---|---|---|---|---|---|---|
| Capacity | Width | Depth | Width | Depth | Opening | |
| 4 persons | 272 Kg | 1500 | 1200 | 1100 | 700 | 700 |
| 6 Persons | 408 Kg | 1500 | 1450 | 1100 | 1000 | 700 |
| 8 Persons | 544 Kg | 1800 | 1600 | 1300 | 1100 | 800 |
| 10 persons | 680 Kg | 1800 | 1850 | 1300 | 1350 | 800 |
| 16 persons | 1088 Kg | 2500 | 1800 | 2000 | 1300 | 900 |

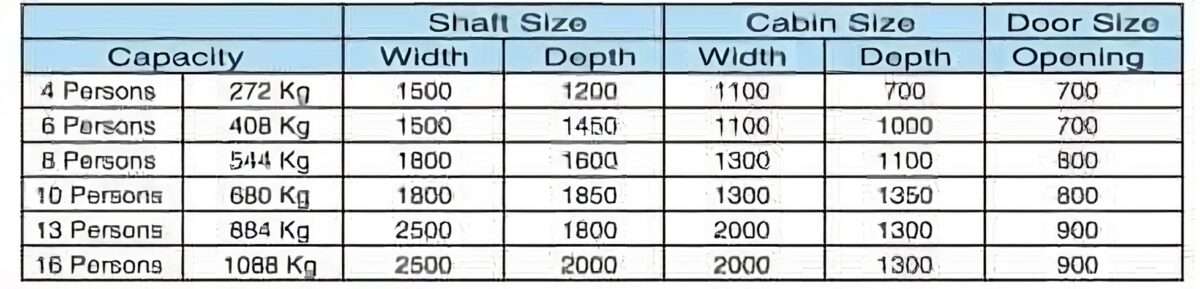

Auto Door Type Side Open
| Total | Shaft Size | Cabin Size | Door Size | |||
|---|---|---|---|---|---|---|
| Capacity | Width | Depth | Width | Depth | Opening | |
| 4 persons | 272 Kg | 1500 | 1200 | 1100 | 700 | 700 |
| 6 Persons | 408 Kg | 1500 | 1450 | 1100 | 1000 | 700 |
| 8 Persons | 544 Kg | 1800 | 1600 | 1300 | 1100 | 800 |
| 10 persons | 680 Kg | 1800 | 1850 | 1300 | 1350 | 800 |
| 13 Persons | 884 Kg | 2500 | 1800 | 2000 | 1300 | 900 |
| 16 persons | 1088 Kg | 2500 | 2000 | 2000 | 1300 | 900 |
